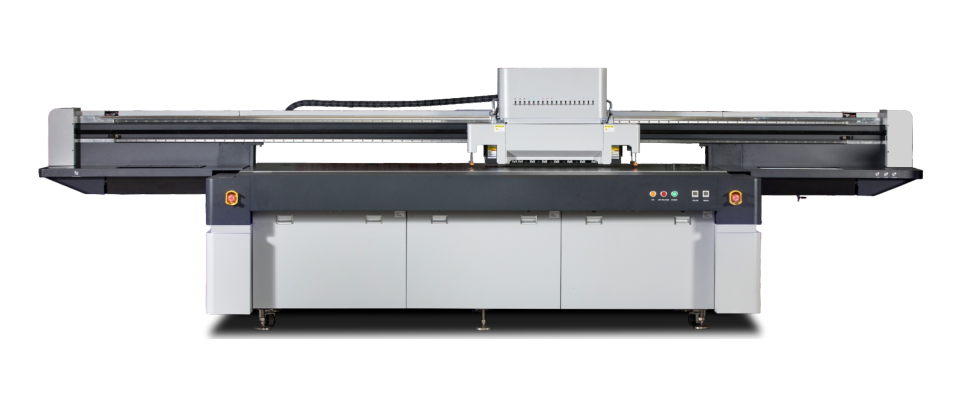

機器型號/Model

KCL2512/KCL3020

打印技術/Print Technology

Piezo continuous drop-on demand(DOD)

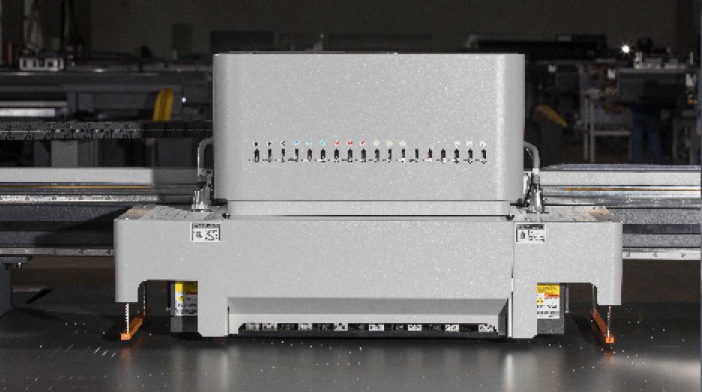

噴頭類型/Head Model

RICOH GEN5/RICOH GEN6

噴頭個數/Printhead Quantity

2-10

墨滴大小/Drop Volume

7 Pl. /5 Pl.

顏色配置/Color options

CMYKLcLm + White + Varnish

供墨方式/Ink Supply System

采用真空負壓自動連續供墨
Automatic continuous ink supply with vacuum negative pressure

墨水類型/INK Type

UV型墨水 / Environmental friendly UV/LED curable ink

烘干裝置/Drying System

LED UV燈固化 / LED UV lamp Curing

平板尺寸/Flat-Bed Size

2500mm x 1250mm / 3050mm x 2050mm

打印厚度/Print Height

100mm/200mm(可選 / optional ）

打印分辨率/Print Resolution

600*2400 dpi

最快打印模式及效率/Print Mode and Efficiency

300*900 3pass 80㎡/h?（草圖模式/Draft Mode ）

介質吸附/Dielectric adsorption

臺面真空吸附/Desktop Vacuum Adsorption

RIP軟件/RIP Software

Photo print 19 /Print Factory

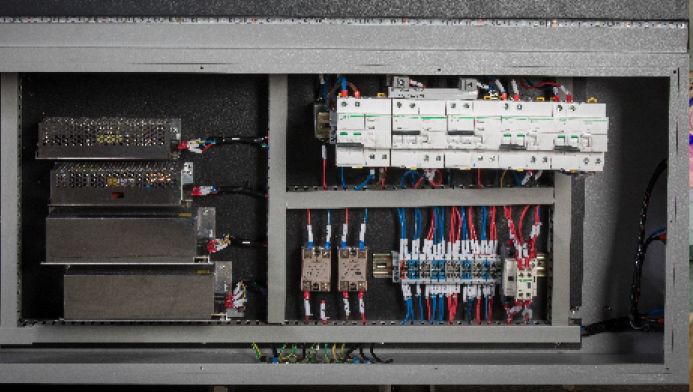

硬件/Hardware

X向驅動  伺服電機/ 直線電機（可選）
X-direction driver  Servo motor/Linear motor(Opt.)

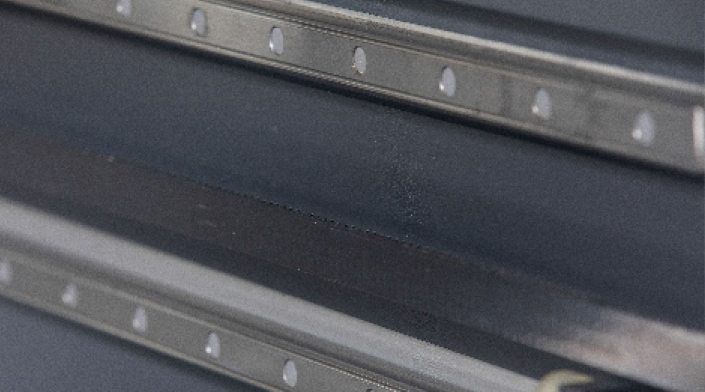

Y向驅動 滾珠絲杠*2+直線導軌*2+伺服電機*2
Y-direction driver  Ball screw*2+Linear guider*2+Servo motor*2

電源要求/Power Requirement

主機 220v (+/-) 10% / 50A / 50HZ

2512機器尺寸/Machine Size 2512

2200mm x 5220mm x 1530mm

3020機器尺寸/Machine Size 3020

3000mm x 5800mm x 1530mm

機器重量/Machine Weight

1370-2500kg.

環境要求/Environmental Requirements

溫度/Temperature 15 ℃ ~ 30 ℃   相對濕度/Relative humidity 40% ~ 80%
