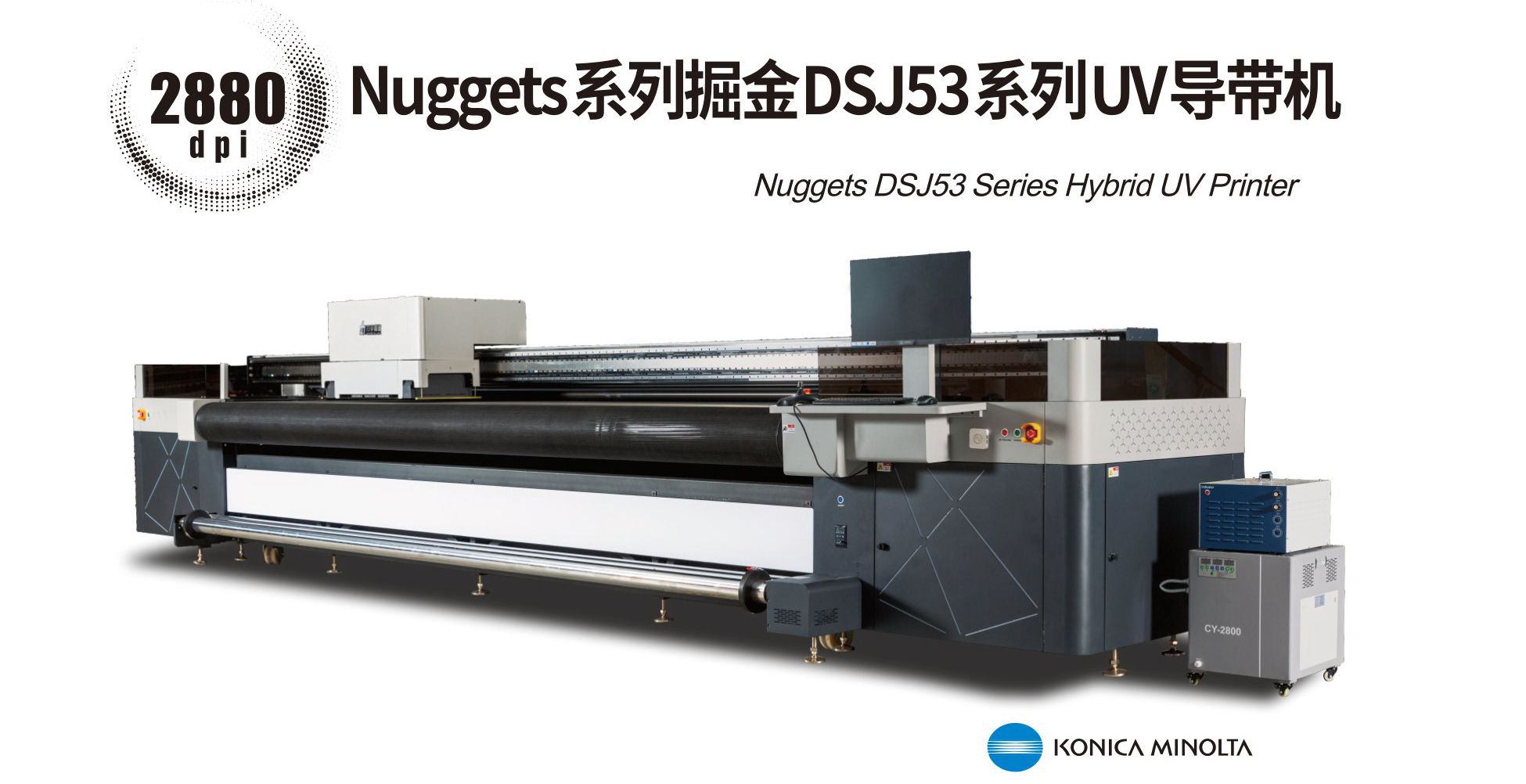

Nuggets系列掘金DSJ53系列UV導帶機

技術參數/Technical Specifications

機器型號/Model		DSJ5300
打印技術/Print Technology		Piezo continuous drop-on demand(DOD)
噴頭類型/Head Model		KONICA6988H/1024A
噴頭控制/PrintHeadControl		軟件調整噴頭溫度，噴頭電壓/SoftwareAdjustHeadtemperature&Voltage
噴頭配置/PrintheadConfiguration		KONICA系列
打印幅寬/MaximumPrintingSize		5.30m
最?打印分辨率/PrintResolution		600*2880dpi
墨水類型/INK Type		UV型墨?/EnvironmentalfriendlyUV/LEDcurableink
顏色配置/Color Profile		KCMY(W可選/optional)/KCMYLcLm（W可選/optional）

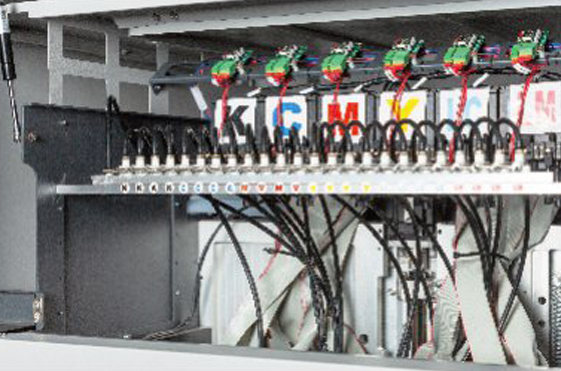

供墨方式/inksupply system		采?真空負壓?動連續供墨 Automaticcontinuousinksupplywithvacuumnegativepressure
介質類型/Media type		臺?真空吸附，分區控制/DesktopVacuumAdsorption,zoningcontrol
烘?裝置/DryingSystem		LEDUV燈固化/LEDUVlampCuring
臺?承壓/TablePressure		25kg/㎡
包裝尺?/Packagesize		827623982100
機器尺?/MachineSize		810021001800
機器重量/MachineWeight		6噸/6Tons
打印接?/Printinginterface		PCIE系統/PCIESystem
電源要求/ PowerRequirement		主機/Mainframe220V±10%50HZ3300W?機/Fandevice220V±10%50HZ7800W UV燈220V±10%50HZ5000W
環境要求/Environmentalrequirements		溫度/Temperature15℃~30℃相對濕度/Relativehumidity40%~80%

以上數據如有更改，恕不另行通知，解釋權歸安徽力宇公司所有。

功能特點/ Highlight Features:

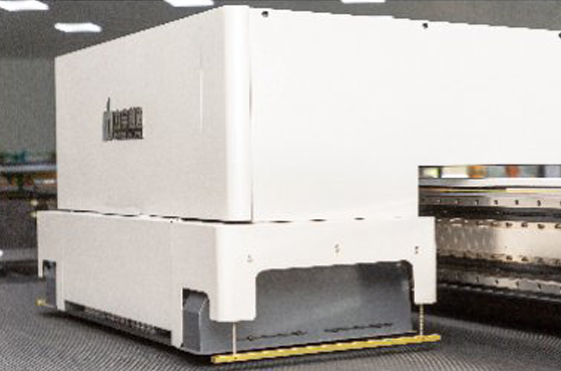

1、重型機頭配置32頭konica 噴頭，滿足各類高速UV噴印需求；

The heavy-duty carriage is equipped with 32 konica print heads to meet various high-speed UV printing requirements;

2、機架采用整體焊接形式，配置重型鋼梁直線電機+金屬光柵+大直徑驅動輥，確保機身整體結構強度和持續打印的穩定性；

The body frame adopts the integral welding with heavy steel beam linear motor, metal encode and large diameter drive roller

to ensure the stability of overall structural and continuous printing;

3、獨立6分區變頻吸附，打印過程中不起皺；

Independent 6-zone frequency conversion adsorption which ensure no wrinkling during printing;

4、采用意大利進口拖鏈系統，標配防撞功能和除靜電技術，保證機器在打印過程中的安全穩定；

Adopt the drag chain system imported from Italy, with anti-collision function and anti-static technology as standard, to

ensure the safety and stability when printing;

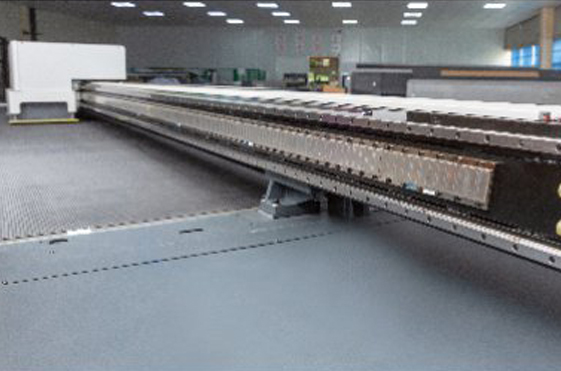

5、采用大節距螺旋網帶，特殊工藝處理，精度高、強度大、吸附平整；

Adopt large pitch spiral mesh belt and special process treatment, with high precision, high strength and smooth adsorption;

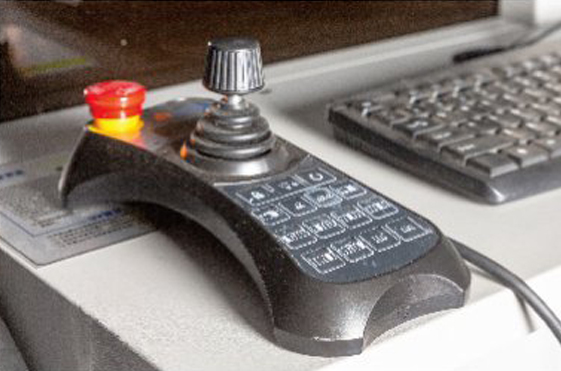

6、獨創手柄控制，腳踏操控，貼心人性設計，打印更舒心；

Original handle control, foot control with humanized design which make printing more comfortable;

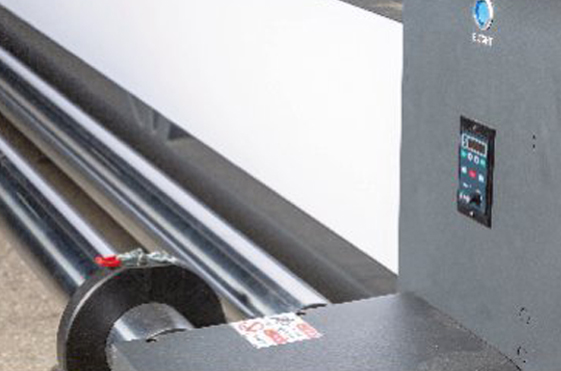

7、全自動導帶糾偏系統，長幅面打印不變形，不跑偏！

The full-auto intelligent guiding belt guiding system allow printing long-format materials without deformation and deviation!
